Lock50 HW04-C+ JLR Key Programming, EVA2 Unlock and IPC Control Package

Lock50 HW04-C+ JLR Key Programming, EVA2 Unlock & IPC Control Package

Fully Activated C+ Package for Advanced Jaguar & Land Rover Work

The Lock50 HW04-C+ Package is the highest-capability Lock50 package for locksmiths who are serious about high-value Jaguar and Land Rover work.

This is not an entry-level JLR package. HW04-C+ is built for shops that want to complete the jobs most locksmiths skip, sub out, or send back to the dealer.

With EVA2 RFA Unlock, IPC cluster control, locked-module key programming capability, Alarm Off support, DOIP communication, 10 HW14 keys, 5 HW06 keys, and lifetime subscription included, the C+ Package gives advanced locksmiths a stronger path to complete more JLR work in-house.

Price: $20,125

Why HW04-C+?

Most locksmiths avoid advanced Jaguar and Land Rover jobs because the workflow can become difficult fast.

They skip the job.
They sub it out.
They send it to the dealer.

With HW04-C+, you do not have to.

This package activates advanced capabilities that allow locksmiths to take on select EVA2 RFA unlock workflows, IPC cluster programming, all-keys-lost situations, advanced PEPS configuration, and high-value JLR key programming jobs that many shops cannot complete.

This is not just a feature upgrade.

This is a capability upgrade.

Quick Summary

• Top-tier Lock50 JLR package
• Built for advanced locksmiths and serious JLR shops
• Key programming on supported Jaguar and Land Rover vehicles
• Supports add key and key erase workflows
• Supports all-keys-lost workflows where applicable
• Supports locked-module JLR workflows
• SW39 IPC Control activated
• SW40 EVA2 RFA Unlock activated
• EVA2 RFA Unlock support for select 2021+ Jaguar and Land Rover platforms
• IPC cluster programming and adaptation via OBD
• Full PEPS configuration control where supported
• Alarm Off support on supported vehicles
• DOIP communication support
• Lifetime subscription included
• Includes 10 HW14 keys
• Includes 5 HW06 keys
• Built for higher-value JLR jobs most locksmiths do not handle

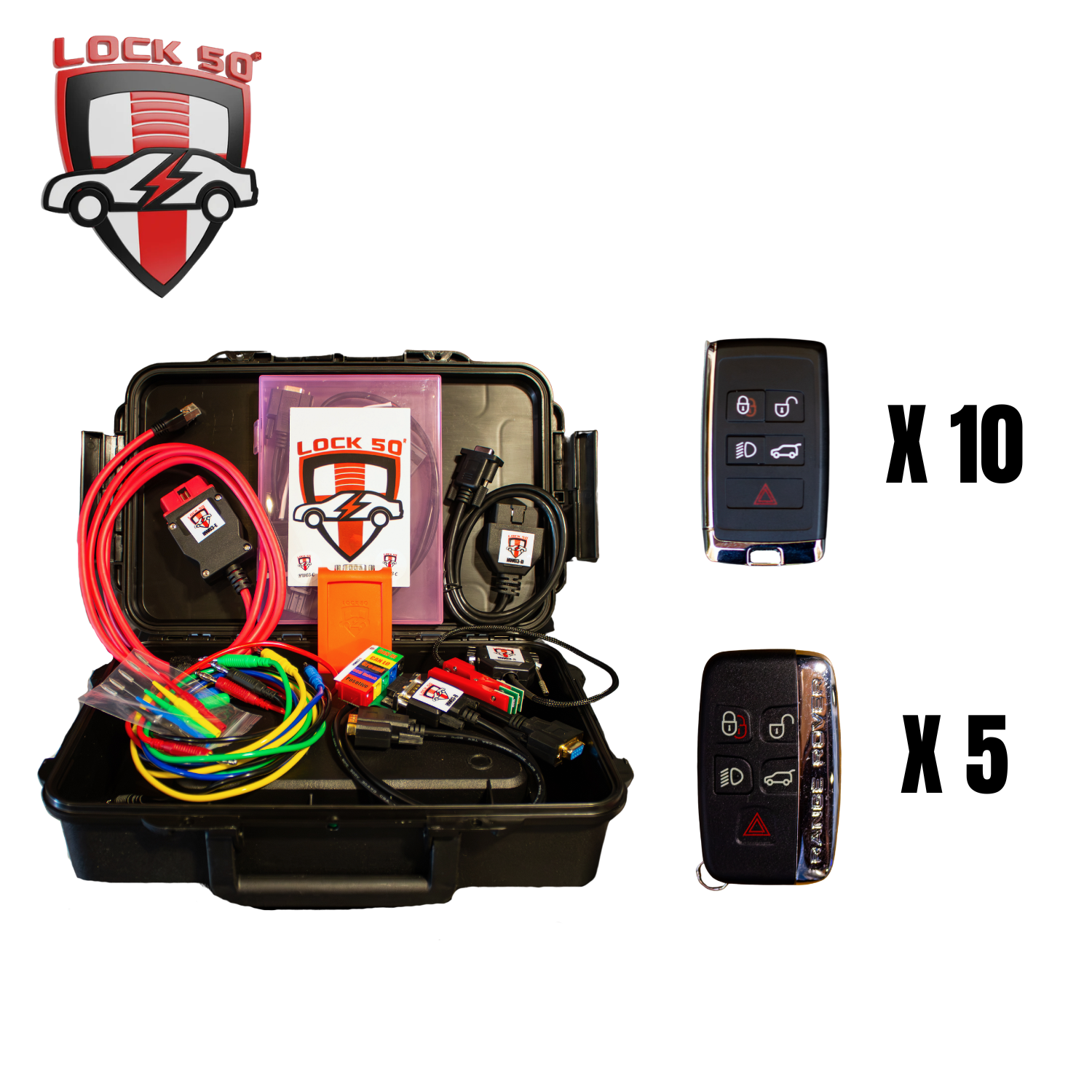

Package Includes

• Lock50 HW04-C tool
• USB-C cable
• HW03-D OBD cable
• HW03-B CAN adapter
• HW03-C adapter: M1 & M2
• HW03-E DOIP cable
• 10 HW14 keys
• 5 HW06 keys
• SW39 Program IPC Cluster activated
• SW40 EVA2 RFA Unlock activated
• Lifetime subscription included

Included Software Value

The HW04-C+ Package includes major software activations and long-term subscription value.

• HW04-C Package - $13,750 value
• SW39 Program IPC Cluster — $2,650 value
• SW40 EVA2 RFA Unlock — $6,600 value
• Lifetime Subscription Included — $4,240 value
• 10 HW14 Keys — $3,500 value

Total added value: $30,240

Package price: $20,125

SW39 — IPC Control via OBD

Program & Adapt IPC Clusters Without Teardown

SW39 gives technicians advanced IPC control through OBD on supported Jaguar and Land Rover vehicles.

No cluster removal.
No bench work.
No unnecessary teardown.

SW39 supports professional IPC workflows including:

• Virginizing IPC / IPCB modules via OBD
• Adapting used clusters
• Programming replacement IPC modules
• Retrofitting new or used clusters
• Reducing job time on supported IPC workflows

The result is a faster, cleaner workflow for cluster programming and replacement jobs that would otherwise require more labor, teardown, or outside support.

SW40 — EVA2 RFA Unlock

Turn Select Locked EVA2 RFA Jobs Into Completed Work

SW40 activates EVA2 RFA Unlock capability for select 2021+ Jaguar and Land Rover EVA2 platforms.

This function is designed for advanced JLR workflows where the RFA is locked and the technician needs a supported path to unlock the RFA and continue with the job.

Supported BCM types may include:

• L8B2
• M8E2
• R8E2

After the RFA is unlocked, supported workflows may include:

• Add keys
• Erase keys
• Perform firmware updates
• Replace RFA
• Continue advanced PEPS configuration workflows

Coverage depends on the vehicle platform, module status, vehicle condition, and supported Lock50 workflow.

Key Workflow Scenarios

The correct workflow depends on the number of working keys, the vehicle condition, and whether the vehicle is armed.

2 Working Keys

On supported vehicles, technicians may be able to unlock the RFA directly through OBD.

1 or 0 Keys

Internal CAN connection may be required for full access.

AKL — All Keys Lost

All-keys-lost workflows may be supported when the vehicle is not armed. This covers many real-world situations, but vehicle condition should always be verified before service.

Connection Methods

Option 1 — Direct CAN Connection

Use the HW03-B CAN Adapter for manual connection to CAN lines when required by the workflow.

Option 2 — HW03-C Adapter Kit

Use the HW03-C Adapter when supported for faster setup and reduced manual wire tracing.

DOIP Communication

Use the HW03-E DOIP Cable for required communication with supported EVA2 modules.

Advanced PEPS Configuration

The HW04-C+ Package gives technicians advanced PEPS configuration control where supported.

Supported configuration options may include:

• Remote frequency settings
• UWB PEPS enable / disable
• Double locking
• Two-step unlocking
• Telematics protection
• Central locking settings
• Additional supported PEPS configuration values

This gives advanced locksmiths more control when working with supported Jaguar and Land Rover PEPS systems.

Core HW04-C Capabilities Included

HW04-C+ includes the advanced C-package foundation, including:

• Jaguar and Land Rover smart key programming through OBD
• Add key workflows
• Key erase workflows
• All-keys-lost workflows where supported
• Alarm Off support on supported vehicles
• Locked RFA key programming workflows
• Locked KVM key programming workflows
• Locked BCM key programming workflows
• High-security key duplication workflows
• CAN wire Alarm Off support on supported models
• File-based or cloning workflows on supported locked-module vehicles
• OEM, aftermarket, and Lock50 key workflows where supported

The C+ Package builds on that foundation with EVA2 RFA Unlock, IPC control, expanded hardware, 10 HW14 keys, 5 HW06 keys, and lifetime subscription included.

Best For

• Advanced automotive locksmiths
• Shops already serious about Jaguar and Land Rover work
• Locksmiths who want to complete jobs other shops turn away
• Shops handling high-value JLR key programming
• Technicians working with select EVA2 platforms
• Shops that want IPC cluster programming capability
• Locksmiths who want EVA2 RFA Unlock capability
• Shops that want lifetime subscription included
• Technicians who want deeper PEPS configuration control
• Lock50 users ready for the highest-capability JLR package

Important Notes

This package is intended for trained professional locksmiths and advanced automotive technicians.

Before purchase, understand the following:

• This function does not unlock BCM.
• For RFA replacement with locked BCM, use SW28 Special Function where applicable.
• EVA2 RFA Unlock applies to select 2021+ EVA2 Jaguar and Land Rover platforms.
• Coverage depends on the vehicle, module status, configuration, and supported workflow.
• Designed for original, unmodified vehicles.
• Not intended for vehicles with prior unauthorized work or unknown module history.
• Vehicle must be functional for certain workflows.
• Engine should start if working keys are present.
• Internal CAN connection may be required for certain 1-key, 0-key, or AKL workflows.
• Professional verification is required before beginning service.

Why Choose HW04-C+?

HW04-C+ removes limitations for shops ready to take on advanced Jaguar and Land Rover work.

More jobs accepted.
More jobs completed.
Higher-value work unlocked.

This package is for locksmiths who do not want to stop at basic key programming. It is built for advanced JLR service, EVA2 workflows, IPC control, locked-module work, PEPS configuration, and the jobs most competitors cannot finish.
